INFORMATION

;Directory
scan03

;Target
Filament Eruption, Limb, Prominence

;Observation start time
2010.08.27 10:08:52JST

;Comment
HOP 0128: Hida and Hinode Campaign Observation
END time: 10:45:54JST

;Information
Line : Ca II K
Slit length : 50.00 : [mm]
Slit width  :  0.10 : [mm] : 0.64 : [arcsec]

Radius            :  14 : [min] :  45 : [arcsec]
Polar angle       : 241 : [deg] :  23 : [min]
Inclination angle :  19 : [deg] :  41 : [min]

Speed1 : 10000 : [pps]
Speed2 :  1300 : [pps]
Triger :    ON
Swing  :   100 : [arcsec]

Exposure :    65 : [ms]
Gain     :    10

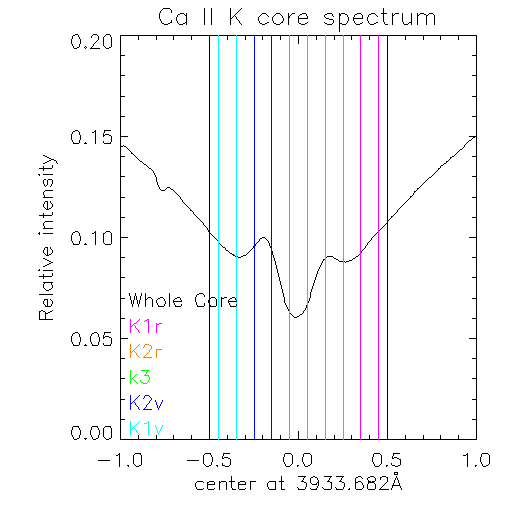

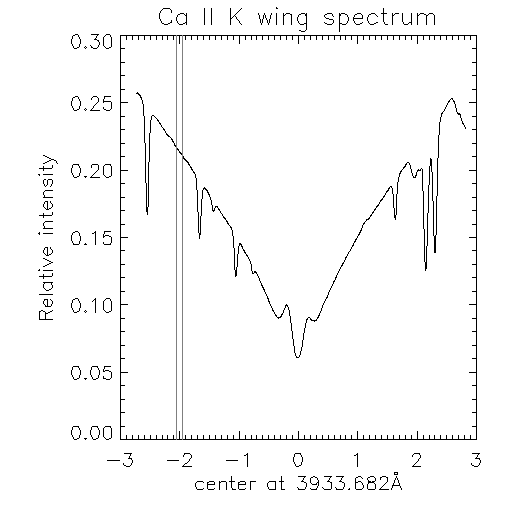

REFSPEC

Javascript Moive: click each image

MOVIES

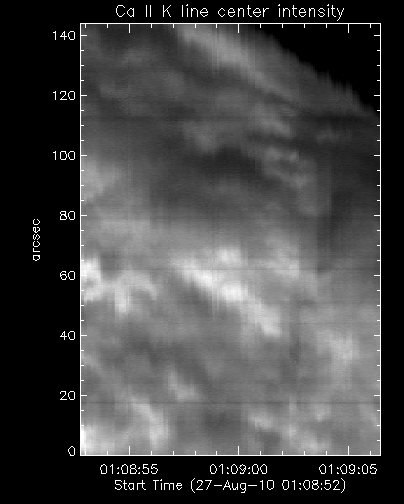

Ca II K3 Intensity

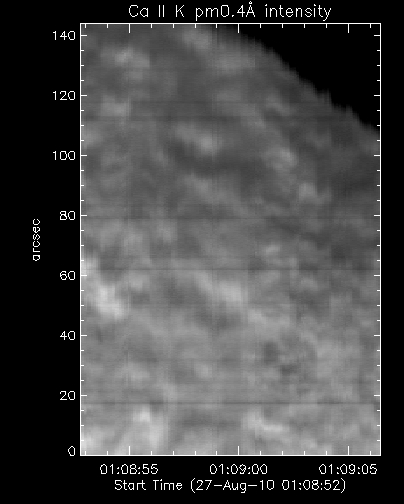

Ca II K2 Intensity (IK2v+IK2r)

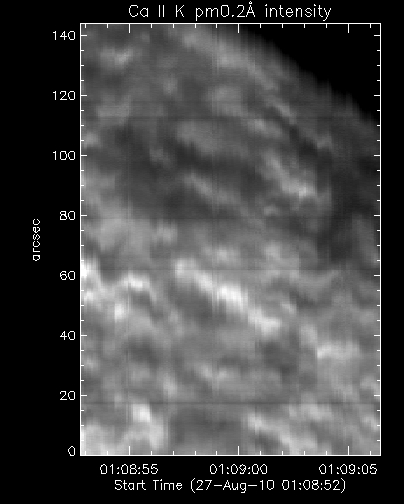

Ca II K1 Intensity (IK1v+IK1r)

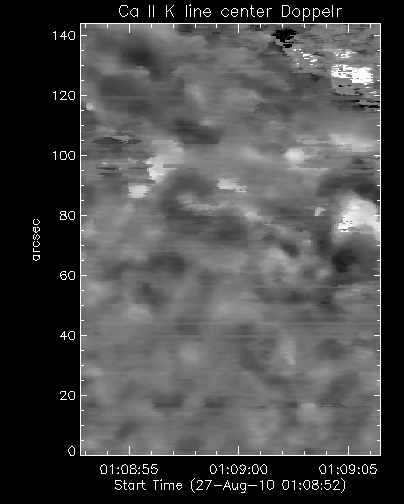

Ca II K3 Doppler

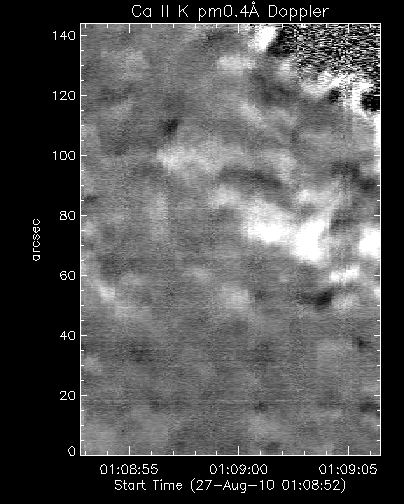

Ca II K2 Doppler (IK2v-IK2r)/(IK2v+IK2r)

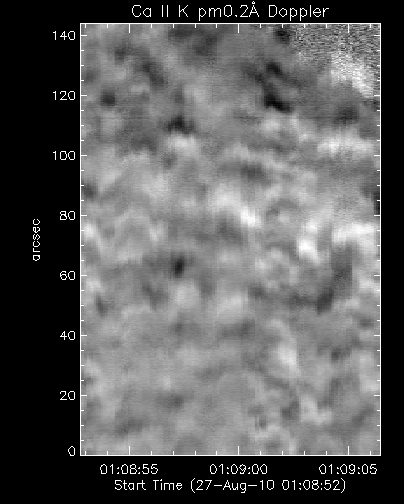

Ca II K1 Doppler (IK1v-IK1r)/(IK1v+IK1r)

Ca II K Whole Core Intensity

Ca II K Wing Intensity
