20070810 Ca H 22:01--23:05UT

Camera: GE1650
Frame rate: > 12[Hz]
FOV: 128" (slit direction)
Position: Radius/02'54"->+120",Polar angle/219deg44',Inclination/309deg44'
Exposure Time: 50-60[ms]
Slit width: 0.1[mm] (0.64")

Javascript Moive: click each image

Ca H3 Intensity (Transition Region)

The first half of each scan	The latter half of each scan

Ca H2 Intensity (h2r+h2v) (Chromosphere)

The first half of each scan	The latter half of each scan

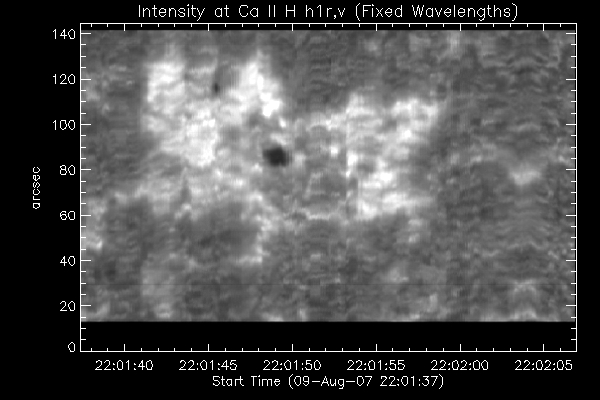

Ca H1 Intensity (h1r+h1v) (Temperature Minimum Layer)

The first half of each scan	The latter half of each scan

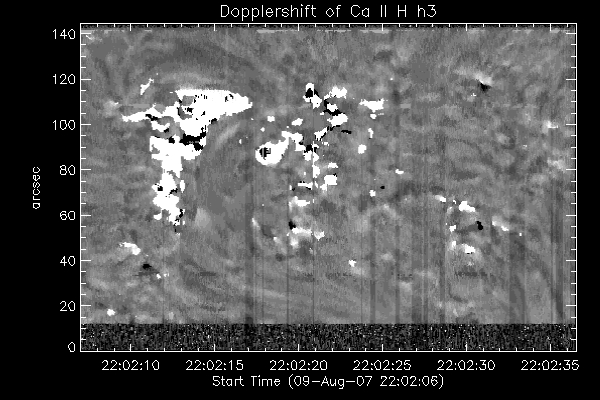

Ca H3 Doppler

The first half of each scan	The latter half of each scan

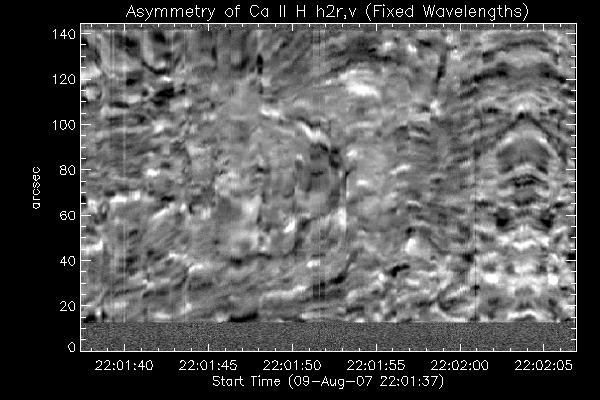

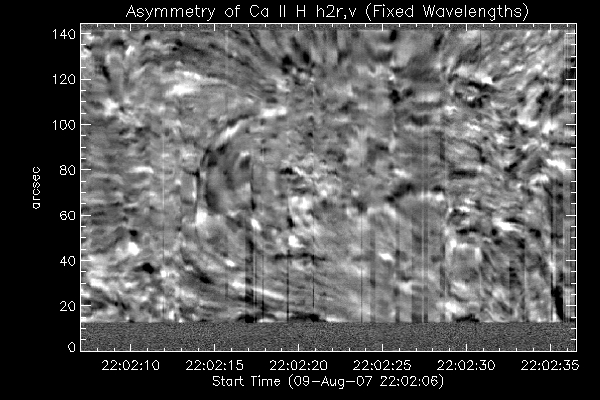

Ca H2 Doppler (h2r-h2v)/(h2r+h2v)

The first half of each scan	The latter half of each scan

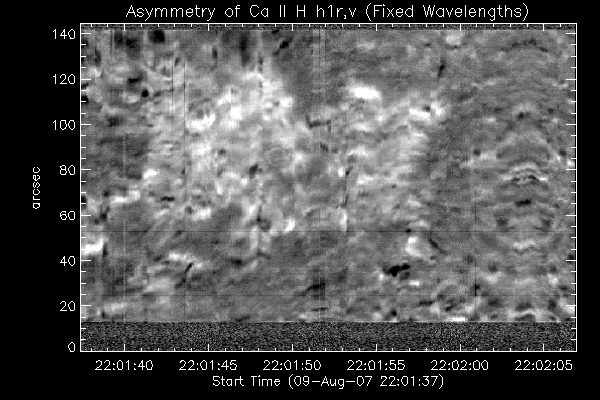

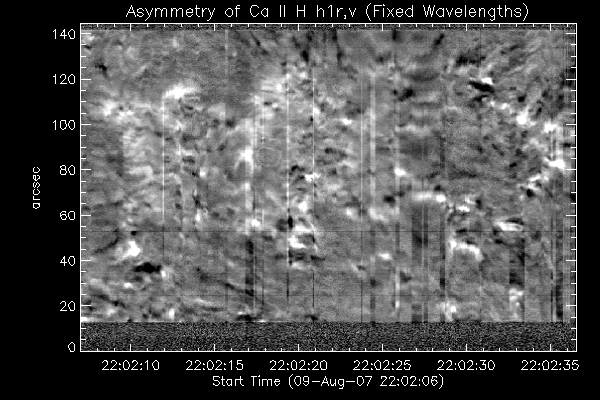

Ca H1 Doppler (h1r-h1v)/(h1r+h1v)

The first half of each scan	The latter half of each scan

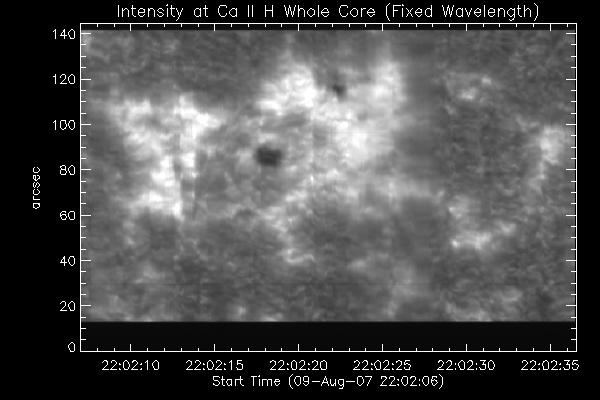

Ca H whole-core Intensity

The first half of each scan	The latter half of each scan

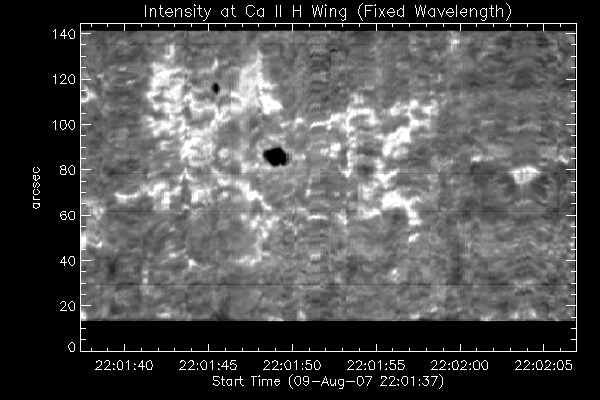

Ca H Wing Intensity

The first half of each scan	The latter half of each scan
