20070528 Ca H 06:16--06:56UT

Camera: GE1650
Frame rate: 12[Hz]
FOV: 128" (slit direction)
Position: Radius/3'10"->+74",Polar angle/116deg43',Inclination/26deg43'
Exposure Time: 70[ms]
Slit width: 0.05[mm] (0.32")

Javascript Moive: click each image

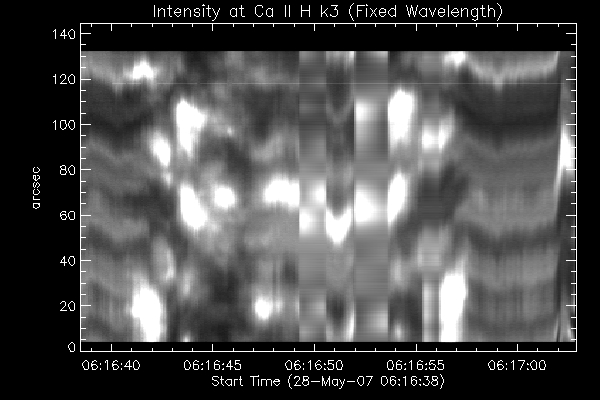

Ca H3 Intensity (Transition Region)

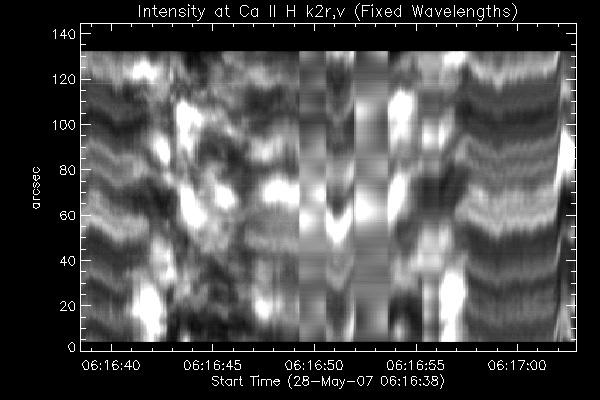

Ca H2 Intensity (h2r+h2v) (Chromosphere)

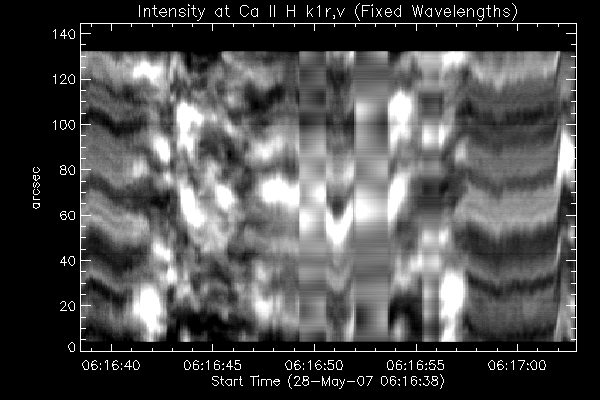

Ca H1 Intensity (h1r+h1v) (Temperature Minimum Layer)

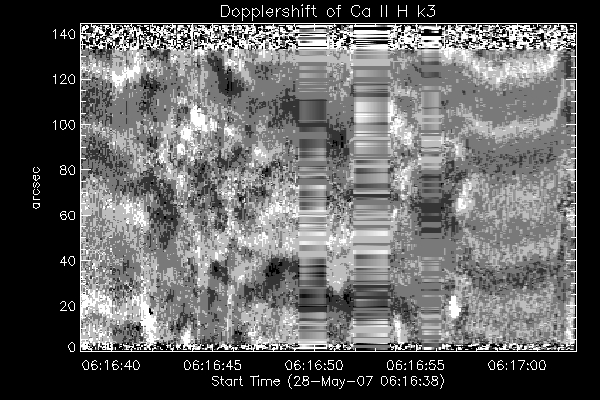

Ca H3 Doppler

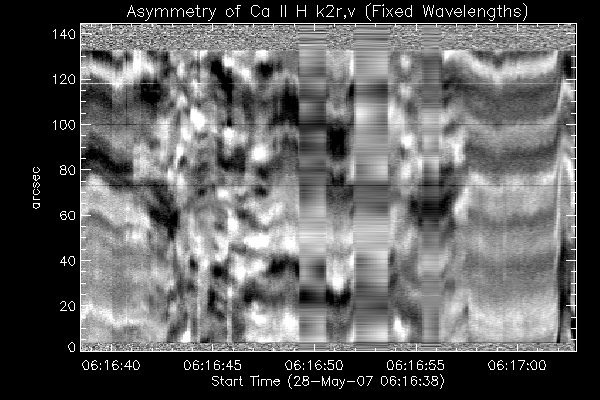

Ca H2 Doppler (h2r-h2v)/(h+2r+h2v)

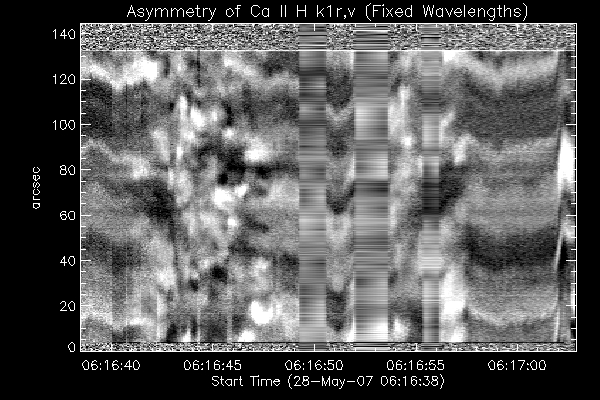

Ca H1 Doppler (h1r-h1v)/(h1r+h1v)

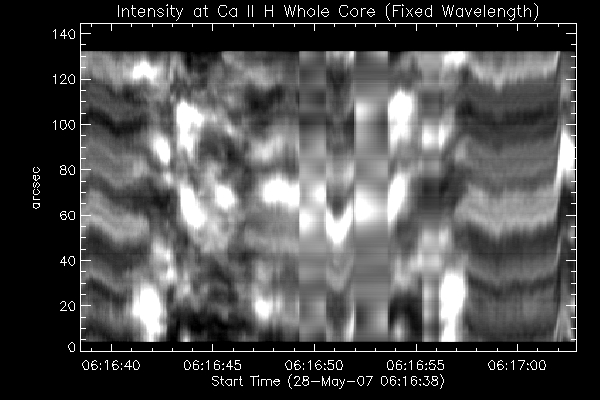

Ca H whole-core Intensity

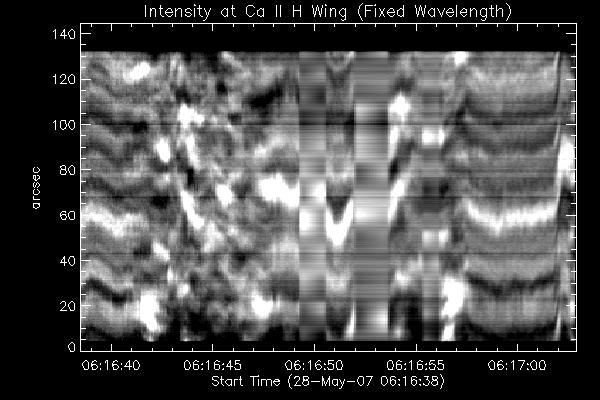

Ca H Wing Intensity
