Hida/DST Spectrum Observation
 CCD Camera: Apogee Alta U10

2007.04.27 (Fri)
00:39:01 - 01:13:00UT

Calibration
   dark: done
   flat: not yet
FOV: 128" (slit direction)
Position: r=12'05"
          polar angle=074o42'
	  inclination: 311o50'
Slit width: 0.2mm (=1.28")
Exposure Time: 800 ms
Frame Rate: 1/3 Hz

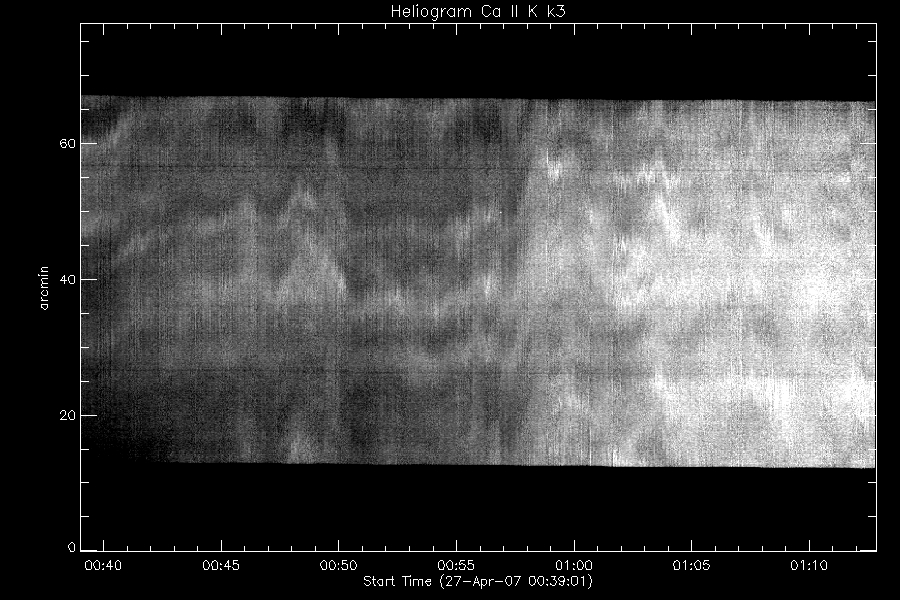

Ca K3 Intensity (Transition Region)

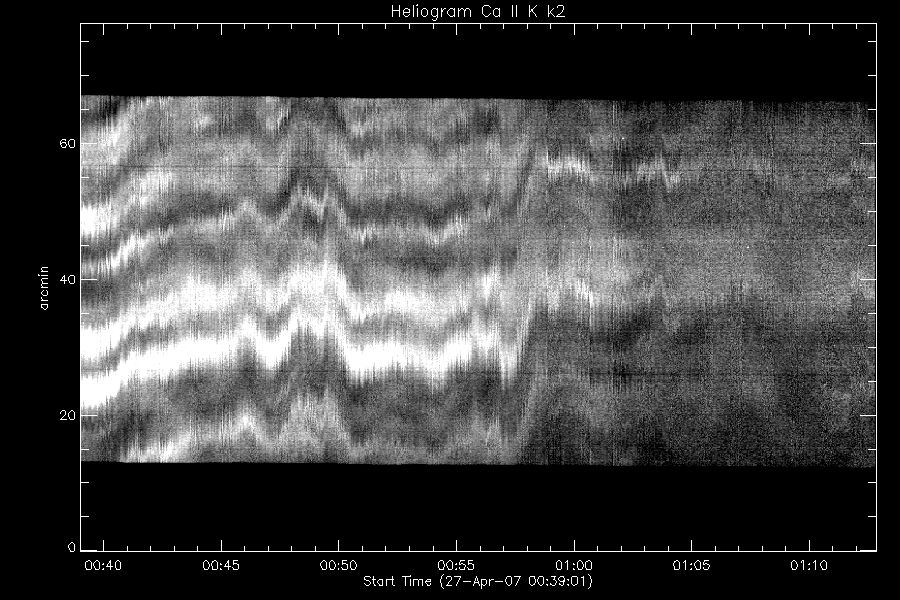

Ca K2 Intensity (k2r+k2v) (Chromosphere)

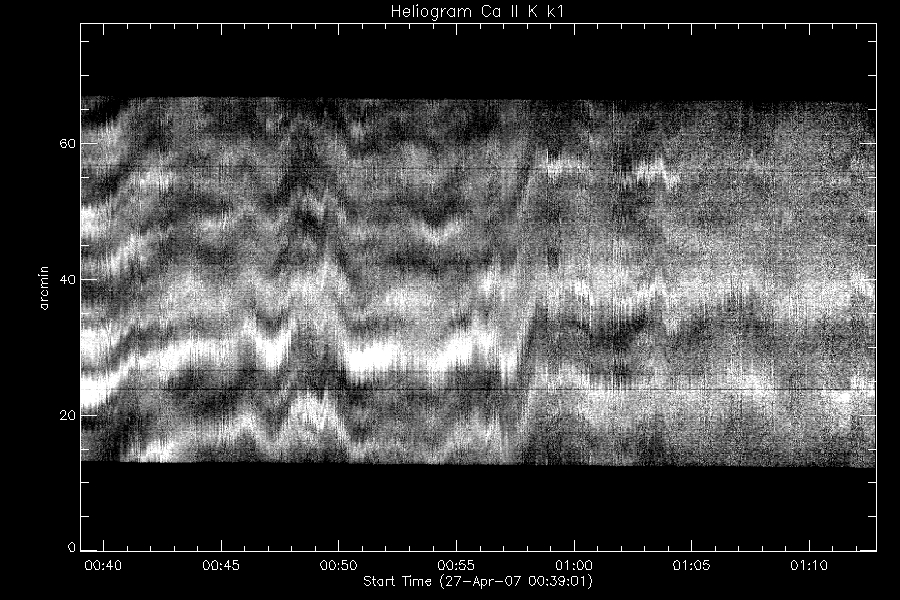

Ca K1 Intensity (k1r+k1v) (Temperature Minimum Layer)

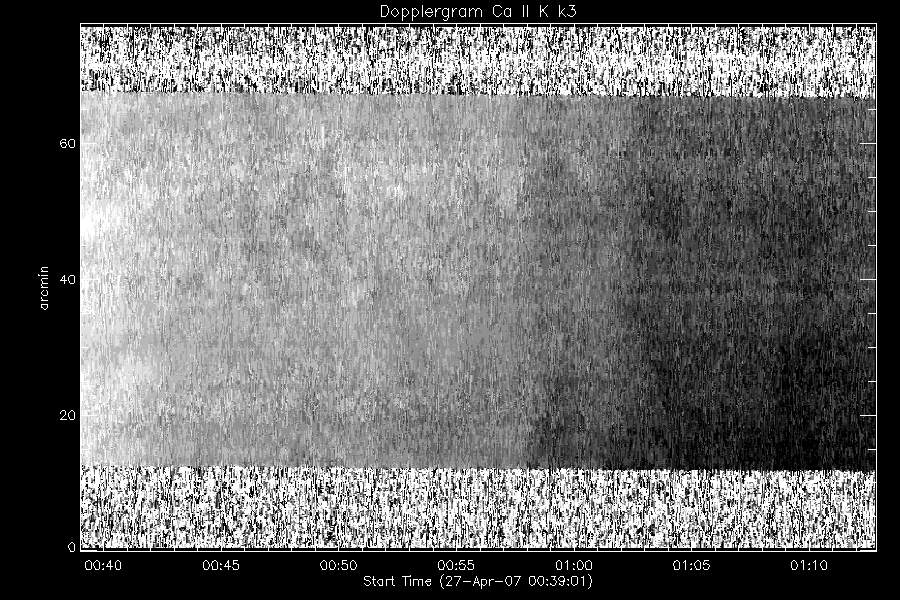

Ca K3 Doppler

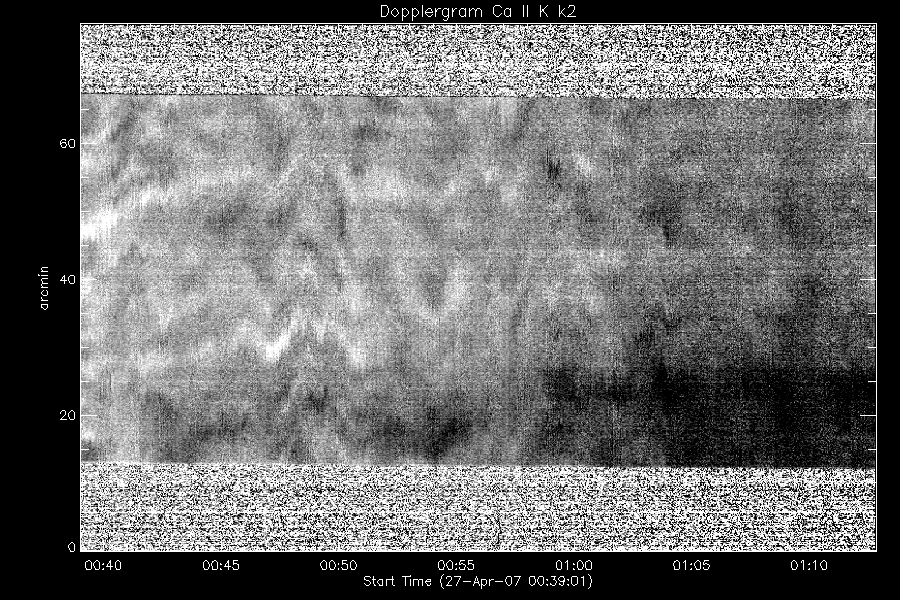

Ca K2 Doppler (k2r-k2v)/(k2r+k2v)

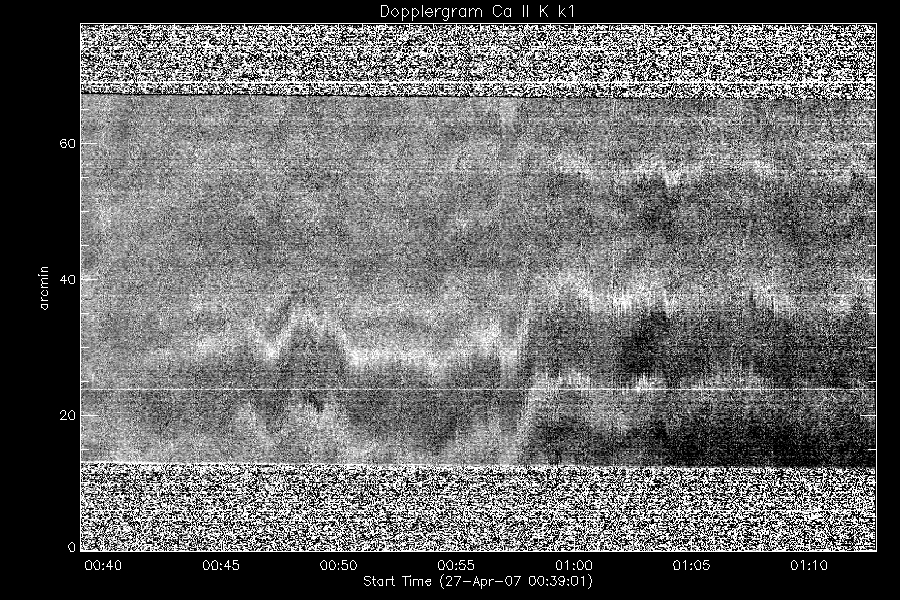

Ca K1 Doppler (k1r-k1v)/(k1r+k1v)

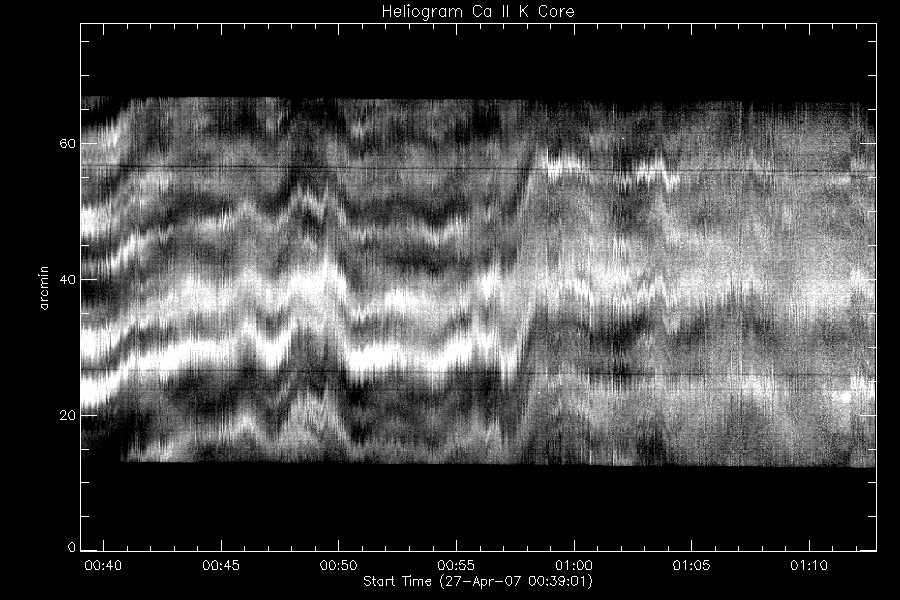

Ca K whole-core Intensity

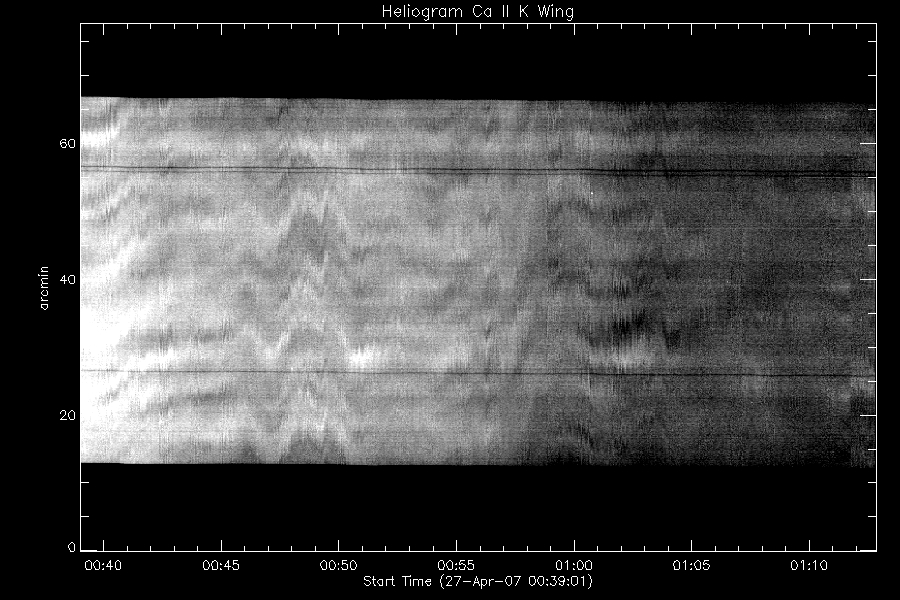

Ca K Wing Intensity
