Hida/DST(VS) Ca K Spectrum Measurement
Quick Look Images

 CCD Camera: KODAK MegaPlus 1.6i

2007.04.15 (Sun)
03:23:04 - 04:11:42 UT

Calibration
   dark: done
   flat: done
FOV: 128" (slit direction)
Center Position: r=8'15"
                 polar angle=80o32'
Slit direction: Solar NS-direction
Slit width: 0.2mm (=1.28")
Exposure Time: 2000 ms
Frame Rate: about 1/4 Hz

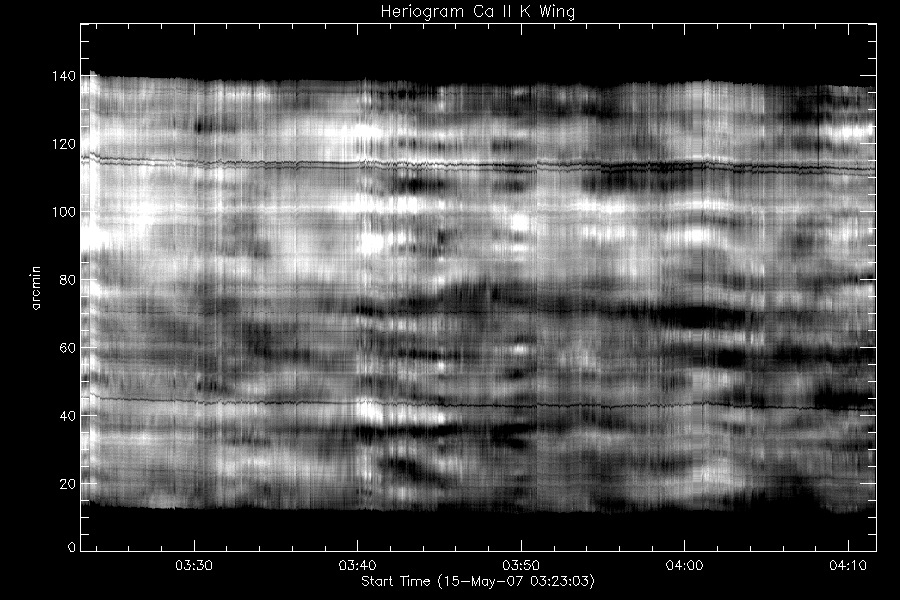

Ca WING Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

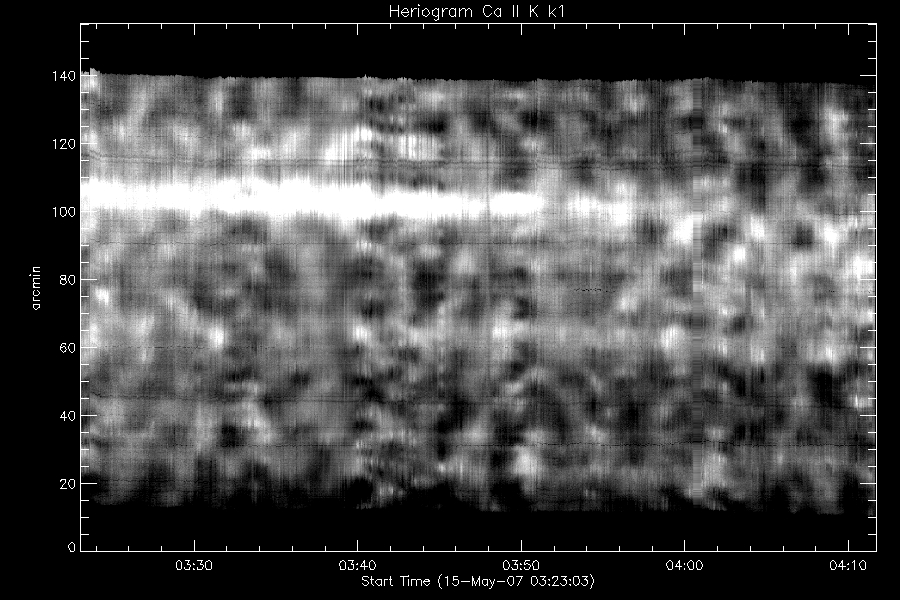

Ca K1 Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

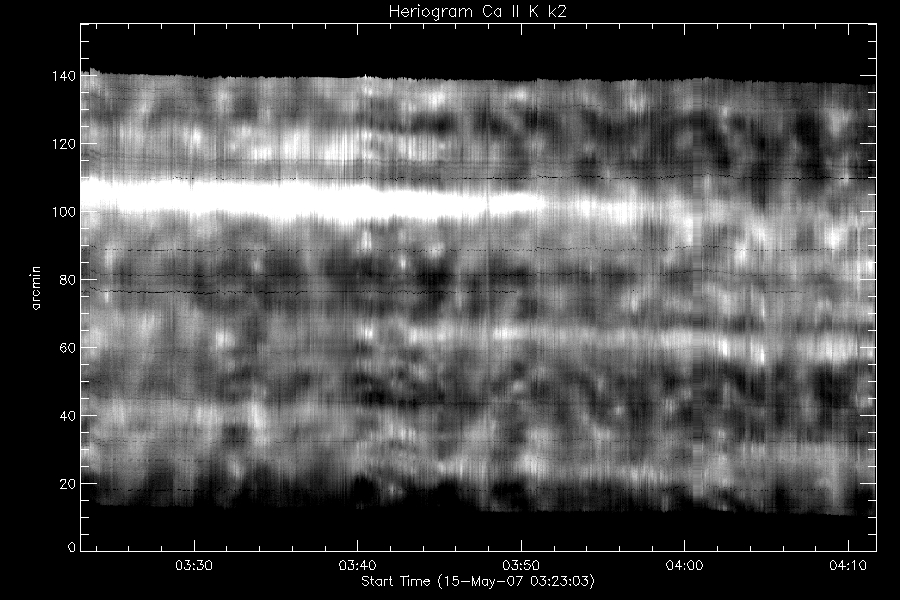

Ca K2 Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

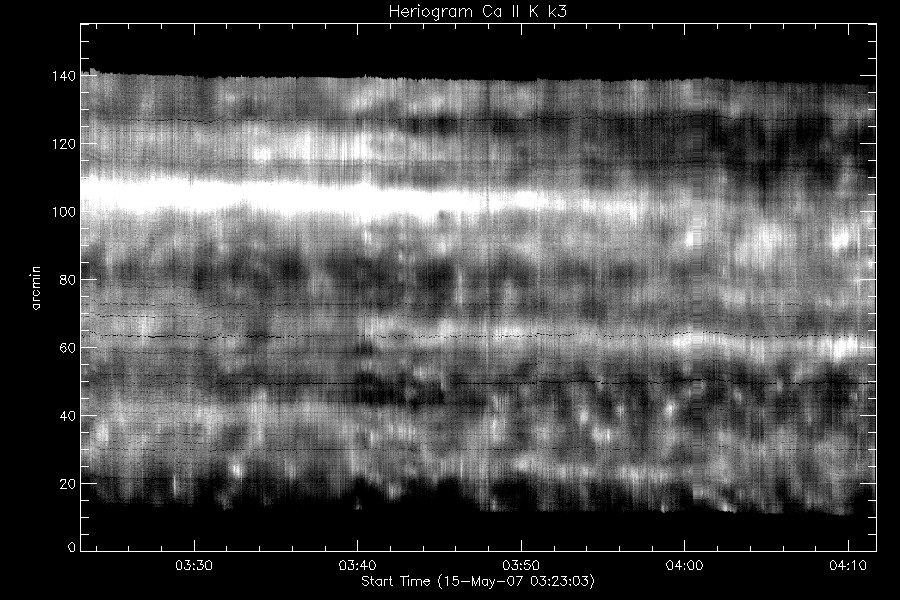

Ca K3 Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

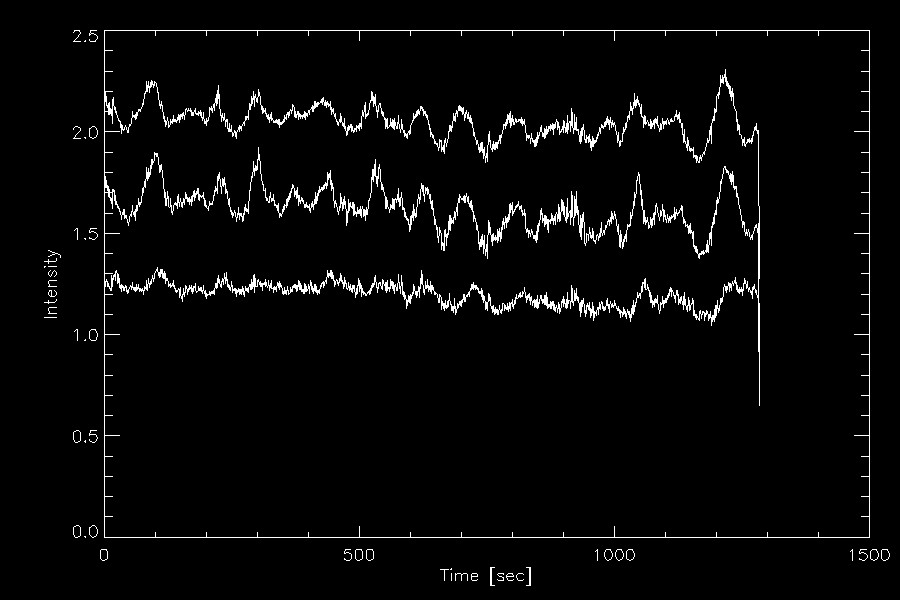

Intensity Time Variation of K1, K2, K3 in a Network Cell

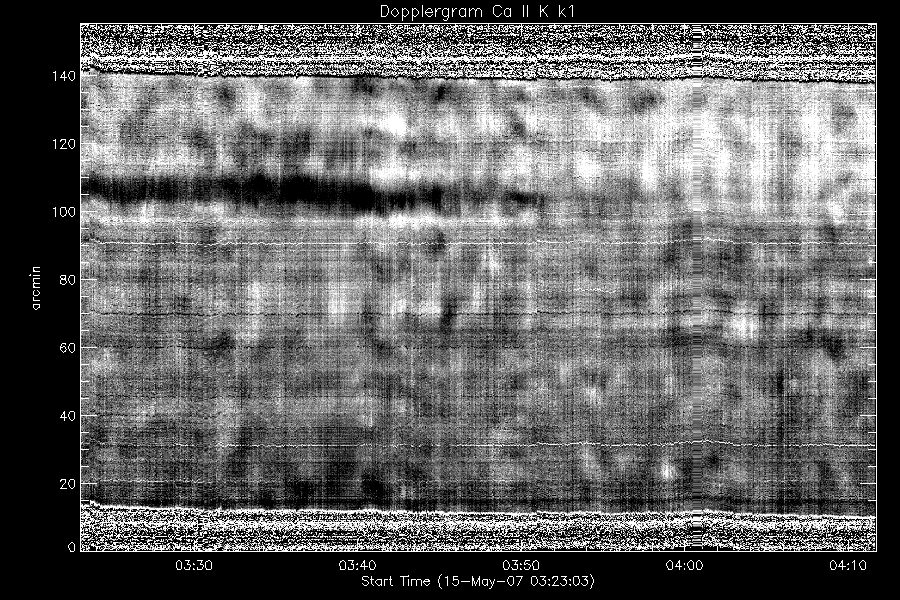

Ca K1-Doppler Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

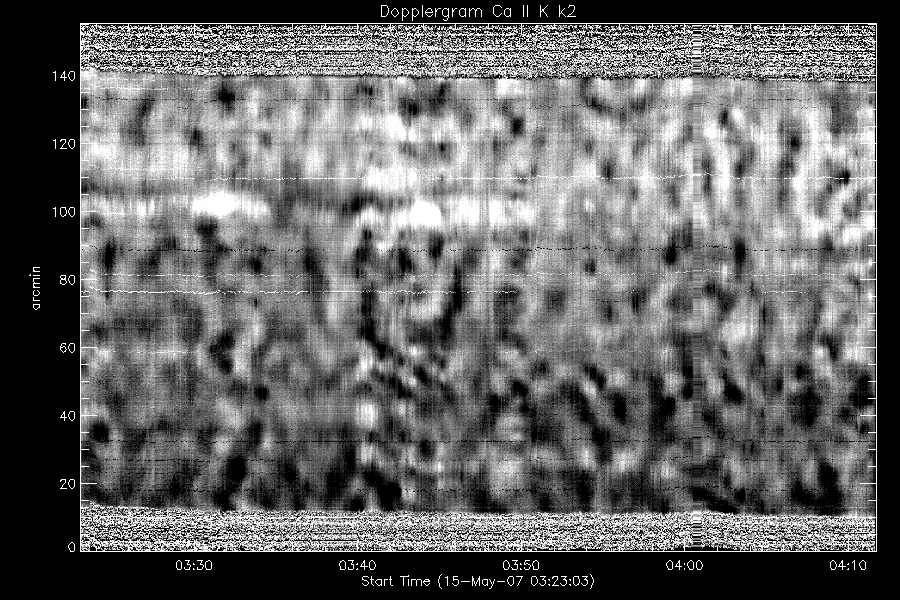

Ca K2-Doppler Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)

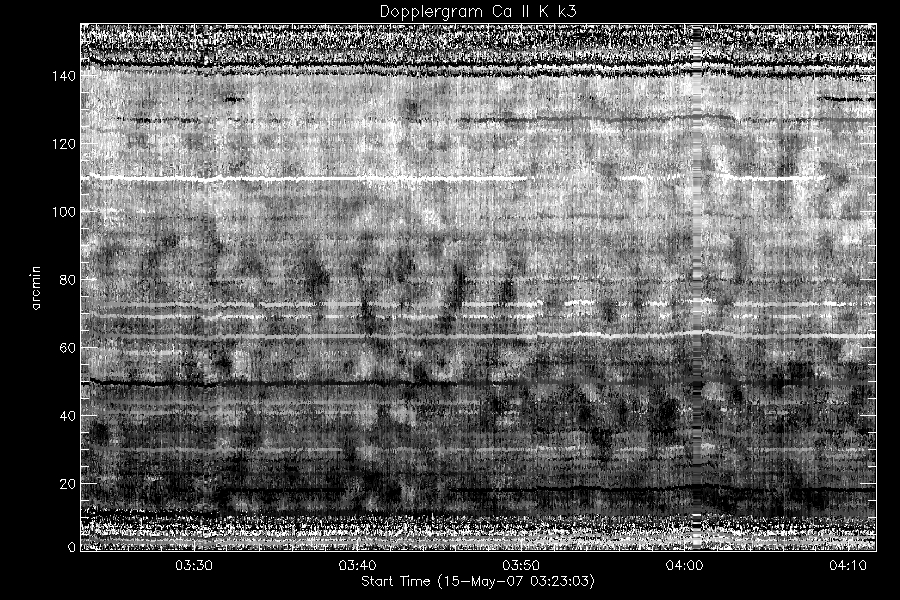

Ca K3-Doppler Time Variation (Horizontal axis: Time, Vertical axis: Spatial Position)
